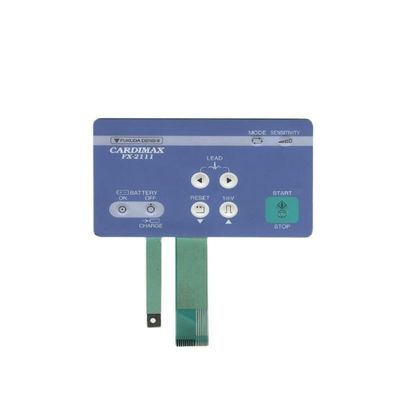

Durable Flat Membrane Switch Equipped with Overlay PC 0.175mm and Driver Voltage 3v Providing User Interface Solutions

Product Description:

The Flat Membrane Switch is a highly versatile and reliable input device designed to meet the demands of various industrial and commercial applications. Featuring a PET circuit flexible option, this switch combines durability with flexibility, ensuring consistent performance even under challenging conditions. The use of PET (Polyethylene Terephthalate) as the circuit material provides excellent resistance to wear and tear, making the Flat Membrane Switch an ideal choice for users seeking long-lasting and dependable membrane controllers.

Operating efficiently within a temperature range of -40℃ to 70℃, the Flat Membrane Switch is engineered to function flawlessly in both extreme cold and hot environments. This wide operating temperature range broadens its application scope, allowing it to be deployed in outdoor settings, industrial machinery, medical equipment, and consumer electronics without compromising on performance or reliability. Such resilience ensures that the Flat Membrane Controller maintains optimal functionality regardless of environmental stresses.

An optional IP65 ingress protection rating enhances the Flat Membrane Interface's robustness by providing resistance against dust ingress and water jets from any direction. This level of protection is particularly beneficial for applications exposed to harsh environmental conditions, such as outdoor control panels, automotive interfaces, and industrial equipment. By choosing the IP65 option, users can safeguard their Flat Membrane Panel against contaminants and moisture, thereby extending the lifespan of the device and reducing maintenance costs.

The overlay of the Flat Membrane Switch is crafted from 0.175mm thick PC (polycarbonate), a material known for its high impact resistance and excellent dimensional stability. This overlay not only protects the underlying circuitry but also offers a smooth, tactile surface for user interaction. The PC overlay contributes to the device’s overall durability while maintaining a sleek and modern aesthetic. It is also customizable to accommodate various graphic designs, labels, and backlighting options, allowing manufacturers to tailor the Flat Membrane Interface to specific branding and functional requirements.

Designed to operate at low voltages of 3V and 3.3V, the Flat Membrane Switch is energy-efficient and compatible with a wide range of electronic systems. The low driver voltage requirement ensures safe operation and reduces power consumption, making it suitable for battery-operated devices and environmentally conscious applications. This characteristic makes the Flat Membrane Controller an excellent choice for portable devices, handheld instruments, and other equipment where power efficiency is crucial.

In summary, the Flat Membrane Switch combines a flexible PET circuit with a durable PC overlay, supported by an optional IP65 ingress protection rating and a broad operating temperature range from -40℃ to 70℃. Its low driver voltage of 3V and 3.3V ensures compatibility with various electronic systems while providing safe and efficient operation. Whether used as a Flat Membrane Controller, Flat Membrane Panel, or Flat Membrane Interface, this product offers a reliable, customizable, and resilient solution for modern input device requirements. Its adaptability and robust construction make it an indispensable component in many fields, including industrial control systems, medical devices, consumer electronics, and automotive applications.

Choosing the Flat Membrane Switch means investing in a product that delivers consistent performance, longevity, and versatility. With its combination of advanced materials, protective features, and energy efficiency, it stands out as a superior choice for designers and engineers seeking to enhance user interaction and device reliability. Experience the benefits of a state-of-the-art Flat Membrane Controller that seamlessly integrates into your application while providing exceptional durability and functionality.

Features:

• Product Name: Flat Membrane Switch
• Circuit Option: PET Circuit Flexible (0.125 mm thickness)
• Ingress Protection: IP65 (optional)
• Lifespan: Up To 1 Million Cycles
• LED Color: Orange or Other Colors Available
• Suitable for Flat_Membrane_Keyboard, Flat_Membrane_Keypad, and Flat_Membrane_Interface applications

Technical Parameters:

Applications:

The Flat Membrane Switch, branded as Lunfeng or available as OEM, is a highly versatile product originating from Shenzhen. With its model number Lunfeng and ISO9001:2015 certification, this product guarantees quality and reliability. The Flat Membrane Panel is designed for a wide range of application occasions and scenarios, making it an ideal choice for many industries.

In industrial environments, the Flat Membrane Interface is widely used due to its durable PET circuit flexible design and an ingress protection rating of IP65 (optional), ensuring resistance against dust and water. This makes it suitable for machinery control panels, factory automation systems, and other harsh environments where reliable and responsive user interfaces are critical. The actuation force ranging from 150g to 250g provides tactile feedback, enhancing user experience and reducing input errors.

The Flat Membrane Keyboard is also popular in consumer electronics, medical devices, and home appliances. Its surface finish options, including texture or gloss, allow customization to match the aesthetic requirements of different products. The driver voltage options of 3V and 3.3V make it compatible with a variety of low-power electronic systems, ensuring energy efficiency and seamless integration.

For customized orders, Lunfeng offers flexible packaging options such as PE bags, cartons, or packaging tailored according to customer requests. With a minimum order quantity of just 1 piece and pricing based on the design, the Flat Membrane Switch product caters to both small-scale prototypes and large production runs. Delivery time is to be discussed, providing flexibility to meet project timelines, while payment terms require T/T 100% before shipment, ensuring smooth transaction processes.

Overall, the Flat Membrane Panel, Flat Membrane Interface, and Flat Membrane Keyboard by Lunfeng are perfect for applications in automotive control systems, medical instrumentation, industrial machinery, consumer electronics, and more. Their robust design, customizable options, and high-quality manufacturing standards make them an excellent choice for any project requiring a reliable and cost-effective user interface solution.

Customization:

Our Flat Membrane Switch product, branded as Lunfeng or OEM, offers exceptional customization services to meet your specific needs. The model number Lunfeng is proudly manufactured in Shenzhen, adhering to the highest quality standards with ISO9001:2015 certification.

We accept a minimum order quantity of just 1pc, making it easy for you to start your project without large inventory commitments. Pricing is based on the design complexity and specifications of your Flat_Membrane_Switch or Flat_Membrane_Controller requirements.

Packaging is flexible, provided in PE bags, cartons, or according to your specific requests to ensure safe delivery. Delivery time is to be discussed to best fit your schedule and project deadlines.

Payment terms are straightforward with T/T 100% payment required before shipment, ensuring a smooth and secure transaction process.

Our Flat_Membrane_Switch products offer optional ingress protection rated at IP65, ensuring durability and reliability in various environments. You can choose between tactile or non-tactile switch types depending on the application.

LED color options include orange or other colors based on your preferences, with driver voltages available at 3V or 3.3V to suit different electrical requirements.

Designed for longevity, our Flat_Membrane_Switch boasts a lifespan of up to 1 million cycles, providing dependable performance throughout its use.

Support and Services:

Our Flat Membrane Switch product is designed for durability and reliable performance in various applications. For technical support, please ensure the membrane switch is installed according to the provided specifications and environmental conditions are within recommended limits.

If you encounter any issues, verify all electrical connections and inspect the membrane surface for any signs of damage or wear. Cleaning should be done gently with a soft cloth and mild cleaning solution to avoid damaging the switch surface.

We offer comprehensive services including troubleshooting assistance, replacement parts, and customization options to meet specific application requirements. Our technical team is ready to support system integration, programming, and maintenance to ensure optimal functionality.

For warranty claims, please refer to the warranty terms provided with your product and have your purchase details ready for verification.

Regular maintenance and adherence to usage guidelines will help extend the life and performance of your Flat Membrane Switch.

Packing and Shipping:

Product Packaging: The Flat Membrane Switch is carefully packaged to ensure protection during transit. Each unit is individually wrapped in anti-static protective film to prevent electrostatic discharge damage. The switches are then placed in custom-fitted foam trays to avoid any physical damage or deformation. These trays are stacked in sturdy, corrugated cardboard boxes with cushioning materials to absorb shocks and vibrations. All packaging materials are environmentally friendly and comply with international shipping standards.

Shipping: We offer reliable shipping options worldwide to deliver the Flat Membrane Switch safely and promptly. Our logistics partners provide tracking services so customers can monitor their shipment in real-time. Products are shipped via air or sea freight depending on order size and destination. We ensure all shipments include proper documentation such as commercial invoices, packing lists, and certificates of origin to facilitate smooth customs clearance. Expedited shipping options are available upon request.

FAQ:

Q1: What is the brand and model number of the Flat Membrane Switch?

A1: The Flat Membrane Switch is branded as Lunfeng or OEM, with the model number Lunfeng.

Q2: Where is the Flat Membrane Switch manufactured?

A2: The product is made in Shenzhen, China.

Q3: What certifications does the Flat Membrane Switch have?

A3: It is certified with ISO9001:2015, ensuring quality management standards.

Q4: What is the minimum order quantity and pricing for the Flat Membrane Switch?

A4: The minimum order quantity is 1 piece, and the price is based on the design specifications.

Q5: How is the Flat Membrane Switch packaged and what are the payment terms?

A5: Packaging is done in PE bags, cartons, or according to the customer's request. Payment terms are T/T 100% before shipment.
